How outbound call routing works

When your application instructs jambonz to place an outbound call, either by using the dial verb or by using the REST API, it is usually quite straightforward for jambonz to decide where to send the call:

• if you are calling phone number, and you have provisioned a single carrier, or
• if you are calling a SIP URI, or
• if you are calling a registered sip client.

In each of these cases the call routing decision is simple:

• case 1: send the INVITE to the provisioned carrier/SIP trunk
• case 2: send the INVITE to the SIP URI
• case 3: send the INVITE to the registered sip client

However, when you have provisioned multiple outbound carriers in jambonz and you are dialing a phone number (target=“phone” in the dial verb), then a decision must be made as to which of your provisioned carriers to use.

This article describes the outbound routing features that jambonz provides to assist in this decision. Let’s look at the options you have.

Explicitly specify the carrier

The simplest way to route an outbound call is to explicitly specify the carrier to use in the dial verb or api call. You can do this in the dial verb by using the trunk property in the list of targets. In the trunk property you can specify the name of the carrier as you provisioned it in the jambonz portal.

1
session.dial({
2
  callerId: '15086908019',
3
  target: [
4
    {
5
      type: 'phone',
6
      number: destination,
7
      trunk: 'My Best Carrier'
8
    }
9
  ],
10
})
11
.send();

In the case above, the call will be routed to the carrier that is associated with your account that you named ‘My Best Carrier’.

If you are using the REST API to create an outbound call, you can specify the carrier similarly, in the to.trunk property of the request body.

Destination-based routing

Let’s say you have a carrier that you want to use to route calls to a specific country because they offer cheap rates there. However, all other calls you want to use a different carrier. You can accomplish this by using setting up outbound call routes in the jambonz portal.

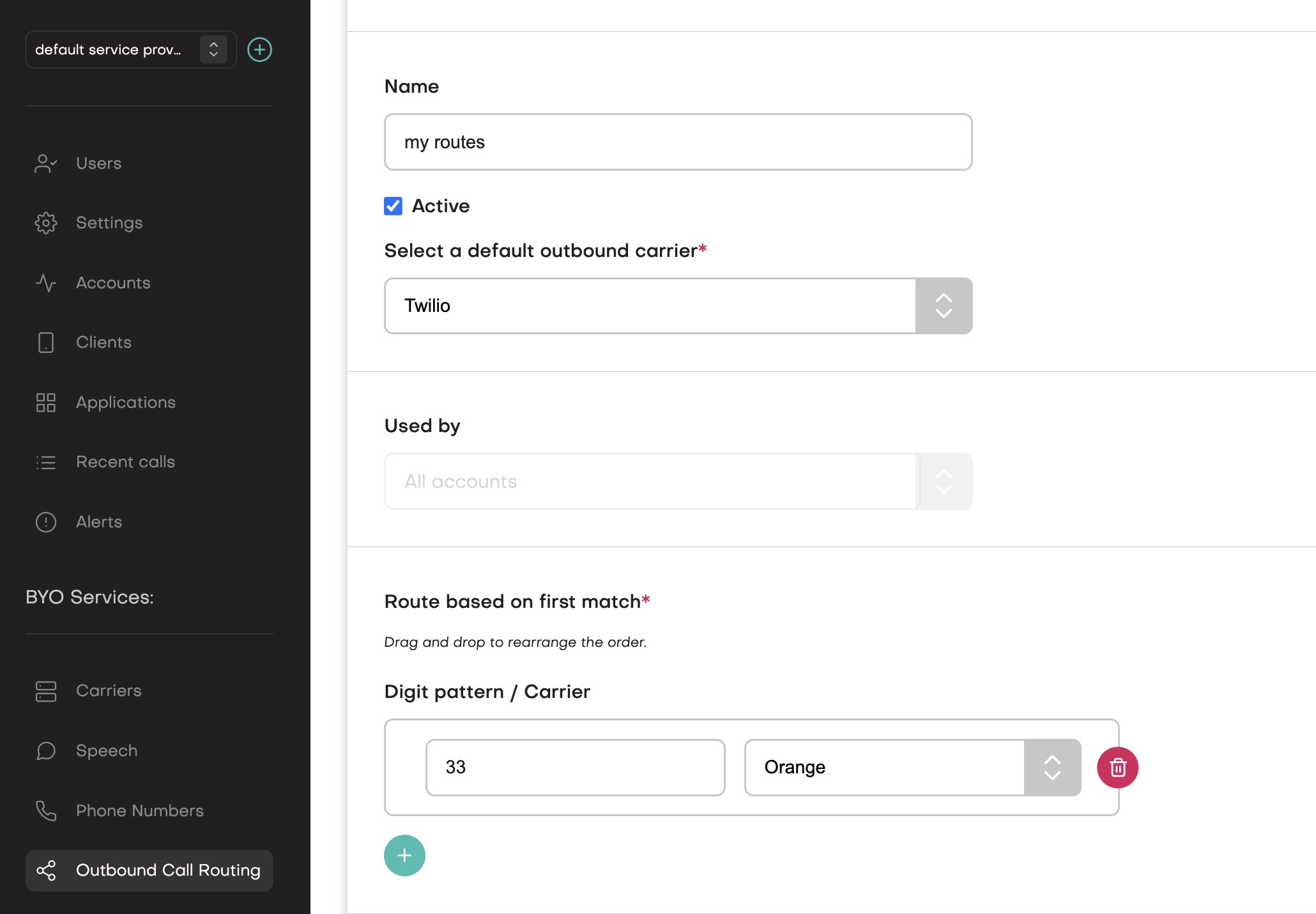

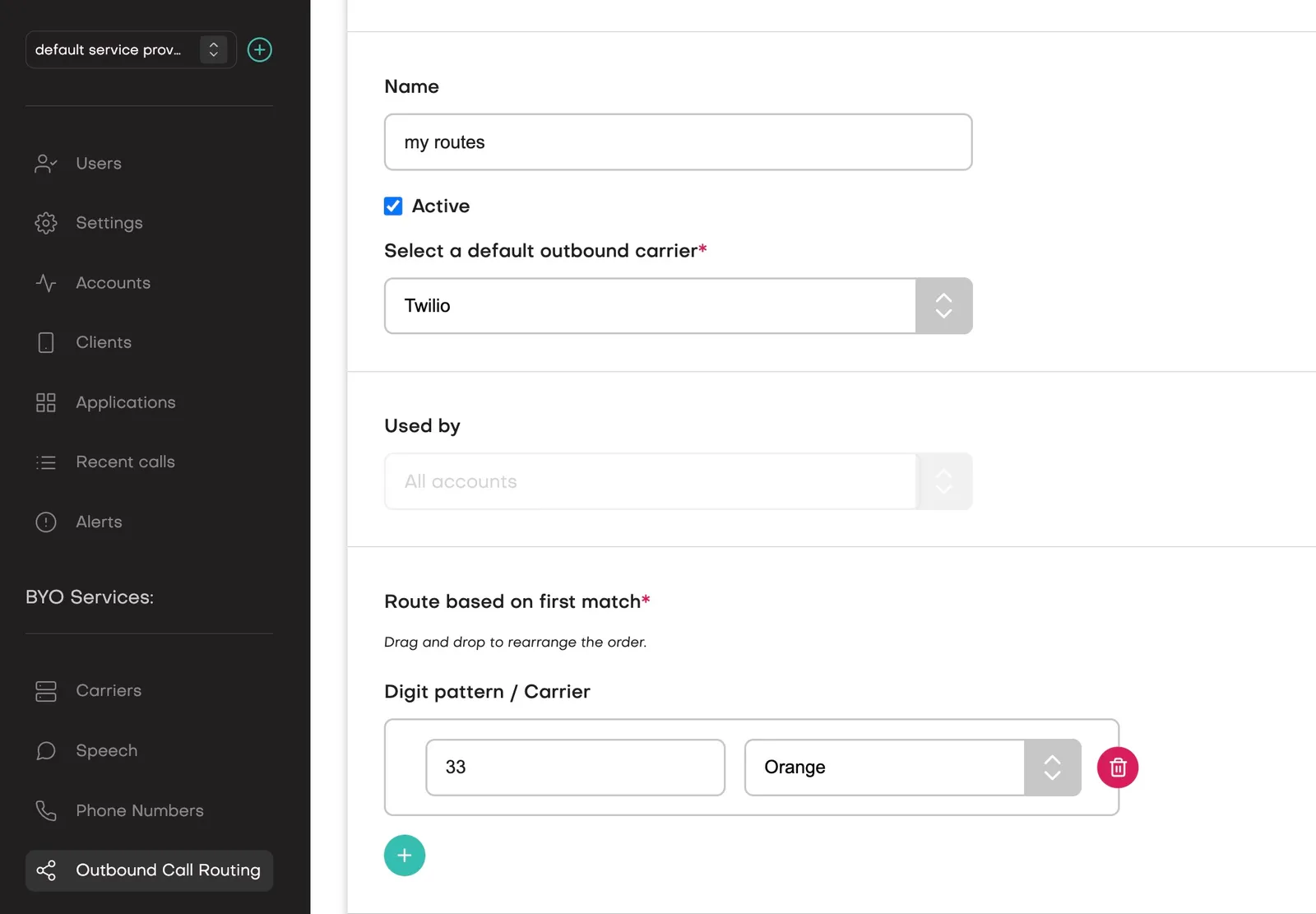

In the example above we create outbound call routes that will use Orange for any calls that we deliver to France (country code 33), while all other calls will go out Twilio.

In our example we had only one digit pattern but you can have any number of them and you can drag and drop them to indicate the order of evaluation.

Each digit pattern can be simply a digit string, or alternatively a regex pattern. When you provide digits, jambonz will match this route if the dialed number starts with the digits you provide. If you provide regex, jambonz will match the route if the dialed number matches the regex pattern.

Random selection

If you have multiple carriers that you want to use for outbound calls, and you don’t use either of the two options above, then jambonz will randomly select one of the carriers to use. Carrier roulette!
